系統概述

System overview

設備巡檢管理系統常用于發電、水泥、化工、鋼鐵、變電站、輸變電等行業，通過定點定時的對設備周期性巡視來預防設備故障發生。對于設備密集型企業，設備部件繁多，任何一個部件出現問題都有可能影響設備的正常運行，異常停機都會給企業運營帶來巨大損失。因此，通過連續不間斷的人工巡檢，對設備出現的異常情況進行及時處理，避免設備故障或缺陷的發生，是企業常用的管理手段。

Inspection management system of equipments is commonly used in industries of electricity generation, cement, chemical, steel, transformer substation, power transmission and transformation. It prevents equipment from failures by timed and fixed periodic patrol inspection on equipments. As for equipment-intensive enterprise, there’re numerous and diverse of equipment parts. Normal operation of equipments may be affected if any one of the parts goes wrong. Cancel closedown will lead to huge loss for enterprise operation. Therefore, continuous manual patrol inspection without interruption is a common management tool for enterprise because it can dispose the abnormal conditions of the equipments in time to avoid equipment failures or defects.

縱觀國內的設備巡檢系統要不設計復雜，操作復雜。很多功能在實際使用中實用性不大，手持機操作人性化設計不足，導致現場操作過程繁瑣。另一種是從巡更系統升級為巡檢管理，軟件功能受硬件設備限制，不能充分滿足用戶需求，而且由于數據專業化分析不足，系統提供給用戶的管理決策有限。Patrol

It is quite evident that design of domestic equipment patrol inspection system is complex and complicated to operate. Many functions are impractical in actual use, and manual manipulator operations are lack of humanization design. These deficiencies lead to complex operation process in site. As for another condition: patrol system upgrades to inspection management. In this condition, software function is limited to hardware device, cannot fully satisfy users’ requirements. Furthermore, system will supply users with limited management decisions because of insufficient specialization analysis of data.

南京翰杰軟件技術有限公司從最初單片機巡檢器到基于條碼識別的wince系統的采集器到目前最新的android系統掌上機。通過多年來對各行業巡檢業務需求的挖掘提煉和集合各廠家的產品的優良性能，利用Android智能掌上巡檢儀、Rfid標簽、wifi無線網絡等先進硬件設備，結合最新研發的設備巡檢軟件組成我公司新一代通用型設備巡檢系統。

From single chip inspection device to wince collector that based on barcode recognition, and then to the latest android palmtop up to present, Nanjing Hanjie Software Technology Co., Ltd makes use of Android intelligent hand-held patrol instrument, Rfid tag, wifi and integrates newest R&D equipment inspecting software, then a new general purpose equipment inspecting system was born.

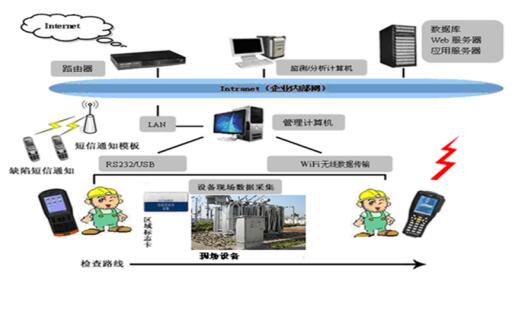

總體網絡架構

Overall network architecture

系統組成

System composition

系統由后臺管理軟件（B/S綠色軟件）、工業android手持機（附帶設備巡檢設備）、射頻信息卡組成。

The system is composed of background administrative software (B/S green software), industrial android hand held set (attach with equipment inspecting device) and radio frequency info card.

后臺管理軟件完成巡檢點基礎信息、巡檢路線、巡檢計劃等設置，同時完成巡檢記錄查詢、到位率統計、設備參數圖表分析、漏檢統計、巡檢考核及其它統計分析功能等。

Background administrative software is responsible for setting basic information of inspection point, inspecting routing, and inspecting plan, furthermore, it will complete inspection record query, arrival rate statistics, equipment parameters diagram analysis, missing inspection statistics, patrol inspection assessment and other statistical analysis function.

射頻信息卡用來標識現場不同的巡檢點。

Radio frequency info card is used for identifying diverse patrol inspection point.

手持巡檢儀采用Android系統的工業級機型，結實耐用。除手機基本功能外，還具有條碼、RFID識別、WIFI通訊、拍照等功能,同時實現與測溫儀、測振儀的無縫集成。

Hand held inspection tour instrument adopts Android, which is industrial grade. It’s solid and durable. In addition to the basic function of mobile phone, it is provided with barcode, RFID identification, WIFI communication and camera. It can also realize seamless integration with thermo detector and vibrometer.

系統特點

System characteristics

Ø 新一代的設備巡檢系統設計簡潔，采用純B/S架構設計，通過簡單的幾個excel模板導入即可完成初始化過程，無需漫長的實施過程；

Ø The new equipment inspecting system adopts a simple design. It takes B/S structure. It can be initialized just by leading-in several simple excel templates, without long-time executing process.

Ø 采用兼容的工業Android機作為手持式巡檢儀，具有RFID標簽和條碼識別，無縫集成多種智能設備巡檢設備，同時支持現場拍照、WIFI、3G通訊等功能；

Ø It adopts compatible industrial Android as portable check instrument; provided with RFID tag and barcode recognition; seamless integrates various intelligent inspecting device; supports photographing on the spot, WIFI, 3G communication etc.

Ø 豐富的統計報表和圖表分析，為管理者提供多方位的管理手段，報表實用性強，可為班組巡檢提供考核和競賽依據；

Ø Abundant statistical statements and chart analysis supply administrator with multifaceted management tools. Strong practicability of statements is provided with assessment and contest basis for shift-group inspection.

Ø 支持oracle、SQLServer等主流數據庫；

Ø Support major databases such as ORACLE, SQL Server etc.

Ø 模塊化設計，產品升級、擴展、定制方便；

Ø Convenient to make module design, product update, expansion and customization;

Ø 具有良好的開放性，可以與各種系統(SIS、MIS、EAM、ERP等)多種方式進行對接，實現數據共享。Ø It has good openness; can make butt joint with various systems (SIS, MIS, EAM, ERP), thus to realize data share.
